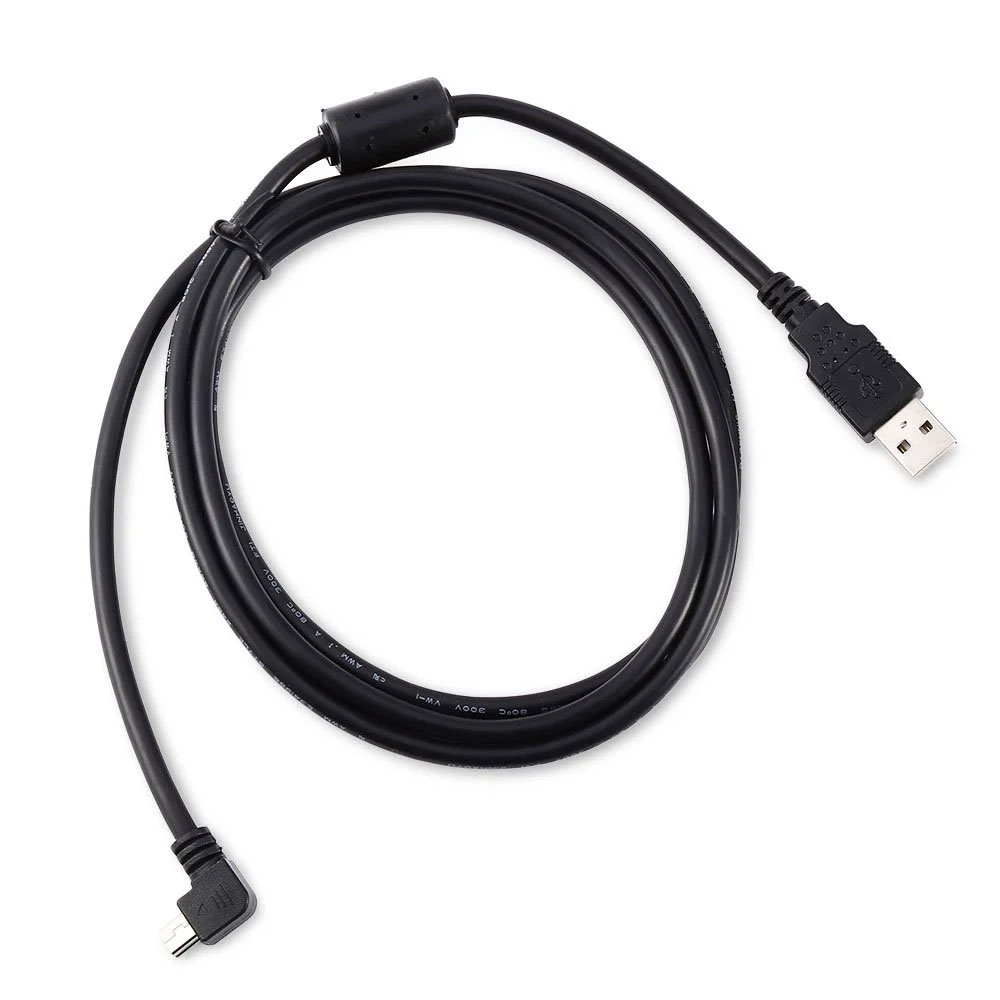

The VAS 5054A is an official VW-Group–approved remote diagnosis head designed for seamless diagnostics and programming of VAG-brand vehicles using ODIS Service and ODIS Engineering software. It features integrated Bluetooth Class 2 wireless connectivity (with a practical range of approximately 2–10 m depending on adapter and environment) and USB-wired support via a 3 m mini-USB cable. All major vehicle communication protocols—K-line (ISO 9141-2), KWP 1281, KWP 2000, UDS, CAN high-speed/low-speed (ISO 11898-2/-3), and SAE J1850 (PWM & VPW)—are handled within the unit itself, using an OKI full-chip architecture, ensuring consistent real-time performance regardless of host PC limitations Knowledge Base Auto Service.
Drivers and protocol processing reside onboard, meaning only simple command/result data are transmitted via Bluetooth or USB—thereby enhancing data integrity and minimizing OS dependency.
Featuring a compact build of about 114 × 48 × 25 mm and weighing around 100 g, the VAS 5054A is powered directly from the vehicle’s electrical supply (8–18 V, approx. 200 mA at 12 V), with built-in auto power-off to preserve battery time.
It supports key diagnostic operations including automatic control-unit identification, reading/erasing DTCs, live data monitoring and graphing, basic settings, adaptations, control-unit coding, and authorized ECU/key programming when used with properly licensed ODIS software.
Multi-language support is robust, covering over a dozen languages such as English, German, French, Spanish, Chinese, Russian, Japanese, and others, depending on the software language package installed.
Though widely used for VAG vehicles from roughly the mid-1990s through early 2020s, the VAS 5054A has gradually been succeeded by the VAS 6154A, which adds Wi-Fi connectivity, higher transfer speeds, and wider coverage for newer models
🔹 Key Functions
• Diagnostic Trouble Codes (DTCs): Read and erase fault codes across all control units.
• Live Data Streaming: Monitor and analyze real-time data from sensors and ECUs.
• Guided Fault-Finding: Step-by-step repair guidance through ODIS software.
• ECU Programming & Coding: Perform module programming, coding, and software updates.
• Adaptation Functions: Adapt new modules and calibrate systems after replacement.
• Service Functions: Oil reset, throttle adaptation, ABS bleeding, immobilizer/key functions, and more.
• System Coverage: Engine, Transmission, ABS, Airbag, Climate Control, Instrument Cluster, Comfort Systems, and other electronic modules.
🔹 Compatibility
• Vehicle Brands: Volkswagen, Audi, Skoda, Seat
• Model Years Supported: Covers a wide range from early 2000s to recent models (depending on ODIS software version)
Supported Protocols:
• K-Line (ISO9141-2)
• CAN (ISO 11898)
• J1850 (SAE J1850 VPW and PWM)
• UDS (ISO14229)
• OBD-II / EOBD
🔹 Hardware & Software

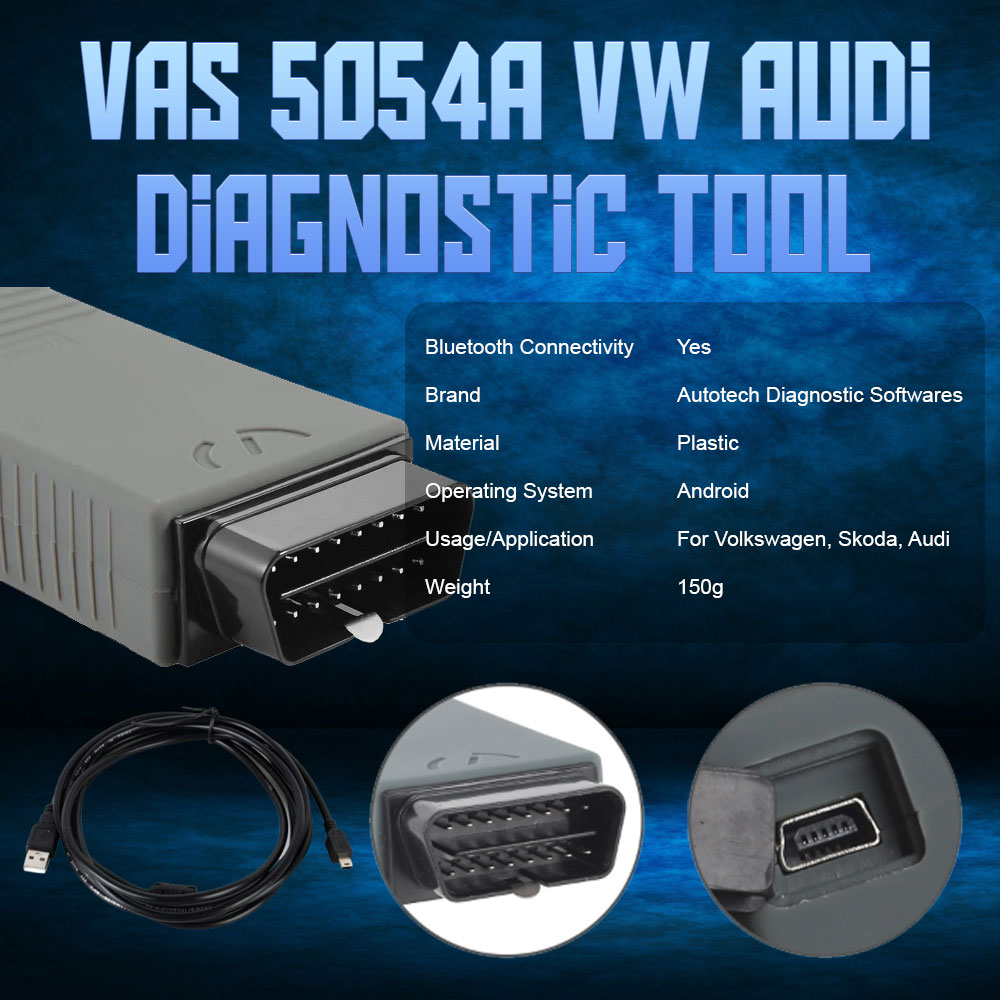

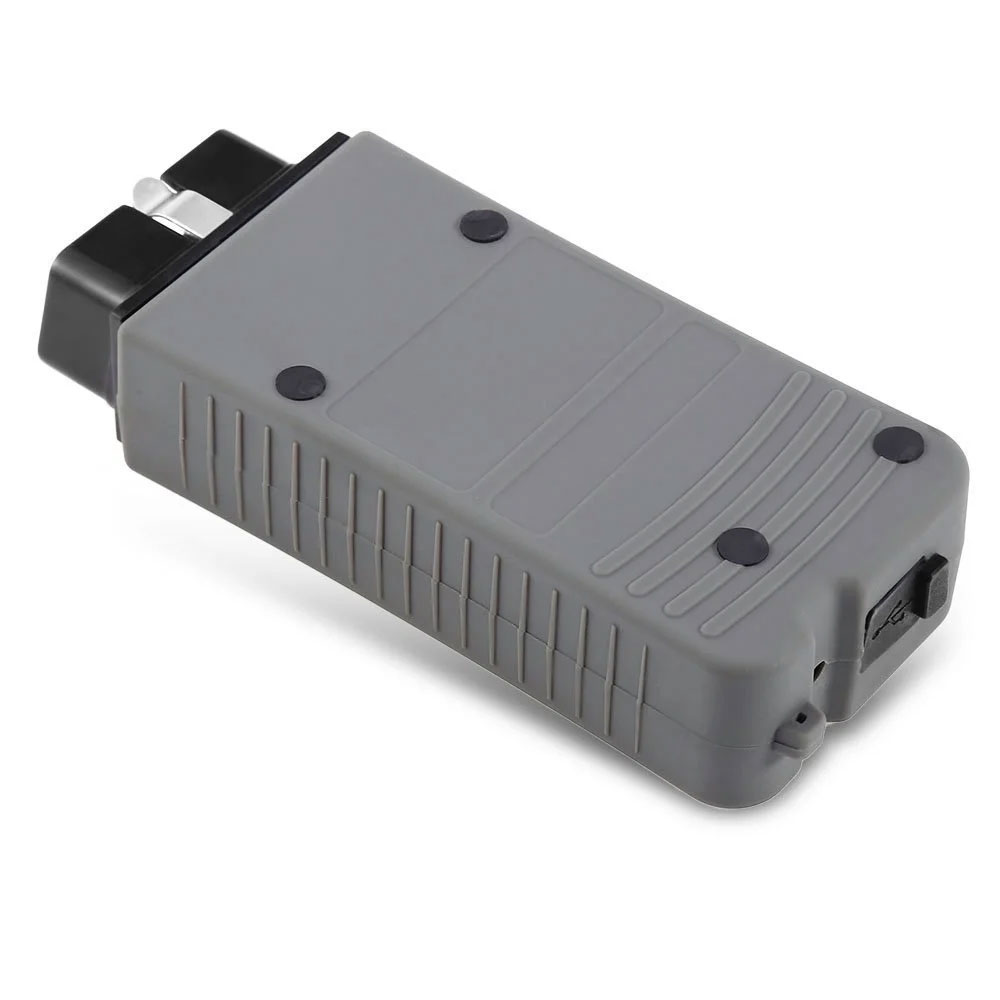

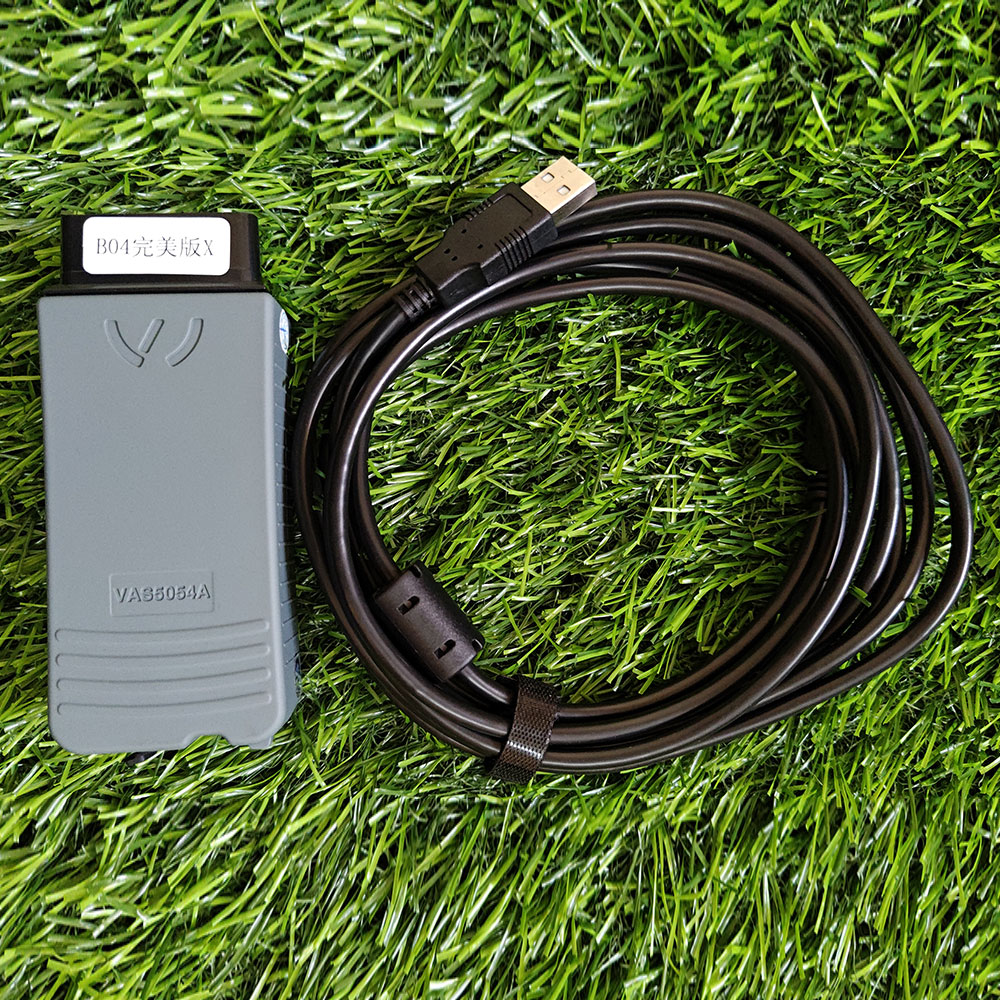

• Interface: Compact VAS 5054A OBD-II Bluetooth/USB device
• Connection: Wireless Bluetooth or USB cable to PC/laptop
• Software: ODIS Service and ODIS Engineering (for advanced programming and coding)
• System Requirements: Windows 7/8/10, at least 2GB RAM, 10GB free storage
• Indicators: LED status indicators for communication and power
🔹 Advantages
✅ Dealership-level diagnostics for all VW Group vehicles
✅ Wireless Bluetooth connection for flexible use
✅ Full coverage of vehicle systems and ECUs
✅ Supports ECU coding, programming, and adaptations
✅ Reliable, cost-effective, and widely used in professional workshops
🔹 Limitations
⚠️ Works only with Windows PCs (not macOS/Linux)
⚠️ Requires ODIS installation and setup, which needs technical knowledge
⚠️ Software updates needed for full coverage of the latest models
⚠️ Some clone versions on the market may have stability issues
🔹 Ideal Users
• VW/Audi/Skoda/Seat dealerships and workshops
• Professional mechanics and automotive electricians
• Independent garages
• Enthusiasts performing advanced diagnostics and vehicle maintenance
✅ Summary: The VAS 5054A Diagnostic Tool is a powerful and versatile diagnostic interface for Volkswagen Group vehicles, offering dealership-level access to all vehicle systems with ODIS software. With Bluetooth and USB connectivity, broad compatibility, and advanced features like ECU programming, coding, and guided diagnostics, it is a reliable solution for professional mechanics, workshops, and advanced users who require precise and efficient diagnostics for VW, Audi, Skoda, and Seat vehicles.
